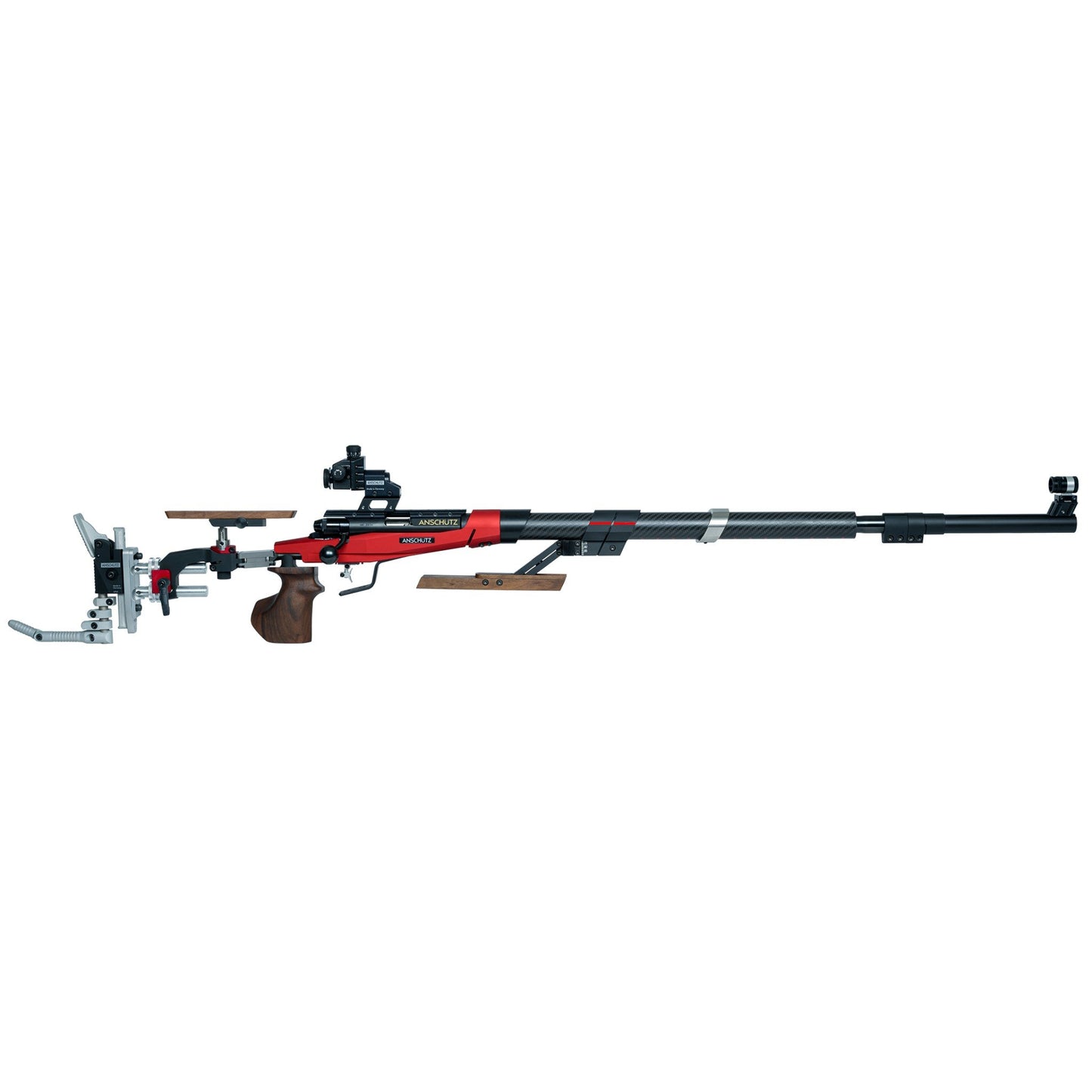

Anschutz 54.30 in ONE-KK Stock w/Walnut Grip

Anschutz 54.30 in ONE-KK Stock w/Walnut Grip

Note: Delivered without front and rear sights, or butt plate assembly

Discover the revolutionary ONE stock design for ANSCHÜTZ small bore actions 54.30 -  With modern, futuristic elegant design and optimal comfort, the ONE stock offers flexibility and precision simultaneously. Enjoy the unique balance of this stock, combined with the vibration behavior which is unique to aluminum stocks, and close to the classic wooden stocks. This is achieved by clamping the action with only one high-strength synthetic clamping sleeve, which evenly absorbs and dissipates vibrations

Barreled Action - 54.30

The basis for the development of the Match 54.30 smallbore barreled action is the well-known and proven Match 54 barreled action

• Match grade barrel
• The ejection window has been moved back by 30mm and reduced in size by 18%. This improves the ergonomics when shooting and increases the stiffness of the case by 33%
• The bolt and the firing pin were shortened by 30mm
• The weight of the firing pin has been reduced, thus reducing the lock time with the same force of the firing pin spring
• The shooting performance is further improved by the newly developed match cartridge bearing
• The barrel is screwed deeply into the sleeve in order to distribute the tension created in the joint as evenly as possible and over a large area
• The barreled action can be installed in all stocks that fit the ANSCHÜTZ barreled actions 1907 or 1913
• Equipped with 11mm dovetail rails on the breech and muzzle to allow for the fitting of aperture sights or a scope
• Maintenance-friendly and durable overall construction, as usual with ANSCHÜTZ

Trigger - 5018

ANSCHÜTZ Triggers are known worldwide for their quality. The trigger 5018, which breaks like glass, leaves nothing to be desired. With an adjusted trigger weight of 125g, this trigger leaves our factory in Ulm. The trigger weight can be adjusted from 60g - 490g to suit your individual needs. The trigger blade can be moved, swivelled and adjusted in height. There is nothing better!

Stock - ONE-KK Aluminium

The ONE-KK aluminium stock is equipped with:

• Walnut ONE pistol grip
• Trigger guard
• Versatile adjustable cheek piece
• PRECISE butt plate carrier
• ONE handstop
• Hook butt plate 4765 - Available separately
  • Lightweight, high-strength aluminum construction
  • Fast, versatile and easily adjustable
  • Anti-slip profile on the shoulder support surface
  • Adjustable, vertically, horizontally as well as lateral tilt
• Hook butt plate Master - Available separately
  • Fits all shoulders. Only 18mm wide
  • Six rubberised shoulder contact points to prevent the butt plate from slipping, and at the same time noticeably dampening recoil
  • All six shoulder contact points are mounted on ball swivels enabling free movement in all directions resulting in a perfect fit
  • Adjustable vertically
  • The hook can be adjusted in any direction
• VARIO-palm rest 4844
  • Made of walnut
  • Stepless elevation adjustment
  • Infinitely variable swivel on both sides of the palm rest
  • Compatible with ONE extenders (014662 and 014714), allowing the height of the palm rest to be extended as required

ONE Grip - Oiled Walnut

• The grip can be infinitely rotated, swivelled and moved. This allows an optimal grip setting for every shooter
• The newly developed grip shape with a grooved inside allows the shooter to bring the rifle even closer to the body when in position
• Available in right or left-handed
• Sizes: small, medium, large

Calibre: .22lr
Weight: 5.64kg
Length: 1,250 - 1,300mm
Sight Line Length: 750 - 1000mm
Stock Length: 9700 -1020mm
Trigger Weight: 60 - 490g

Anschutz Item No
018695 (RH small grip)
018694 (RH medium grip)
018696 (RH large grip)
